Chapter 3

3-20BIOS Setup 3-21 BIOS Setup

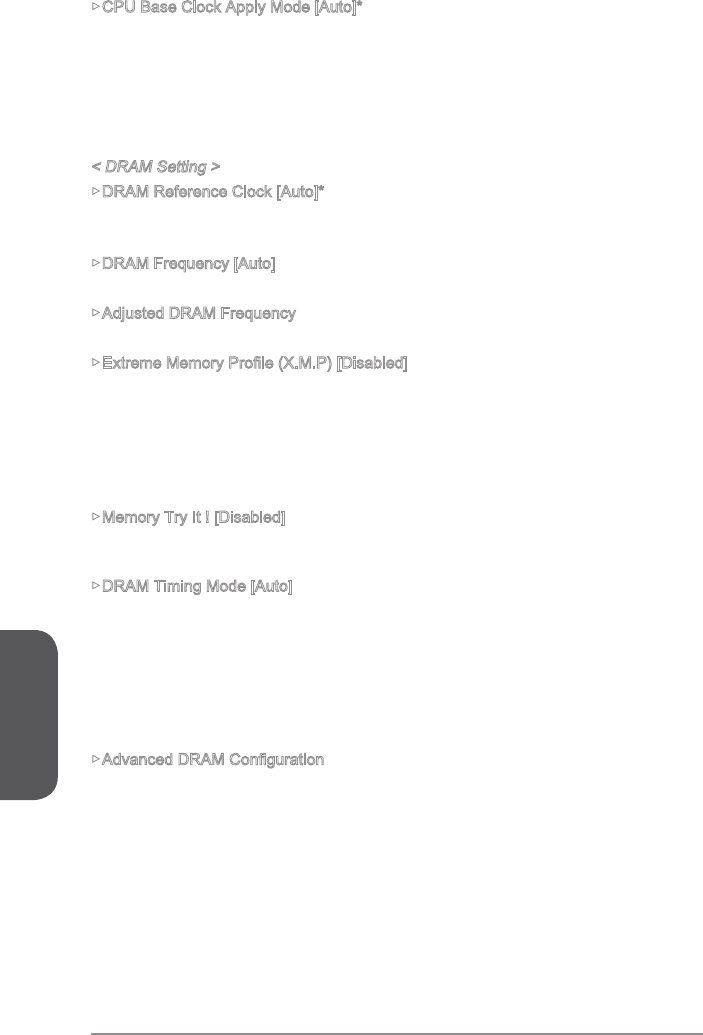

CPU Base Clock Apply Mode [Auto]*

Sets the applying mode for adjusted CPU base clock.

 

[Next Boot] CPU will run the adjusted CPU base clock at next boot.

[Immediate] CPU runs the adjusted CPU base clock immediately.

[During Boot] CPU will run the adjusted CPU base clock during boot.

< DRAM Setting >

DRAM Reference Clock [Auto]*

Sets the DRAM reference clock. The valid value range depends on the installed CPU.

This item appears when a CPU that supports this adjustment is installed.

DRAM Frequency [Auto]

Sets the DRAM frequency. Please note the overclocking behavior is not guaranteed.

Adjusted DRAM Frequency

Shows the adjusted DRAM frequency. Read-only.





This item will be available when you install the memory modules that support X.M.P.

technology.

[Disabled] Disables this function.

 

 

Memory Try It ! [Disabled]

Memory Try It! works for improving memory compatibility or performance by choosing



DRAM Timing Mode [Auto]

Selects the memory timing mode.

[Auto] DRAM timings will be determined based on SPD (Serial Presence

Detect) of installed memory modules.

           

channel.

          

memory channel.



Press <Enter> to enter the sub-menu. This sub-menu will be activated after setting [Link]

or [Unlink] in “DRAM Timing Mode”. User can set the memory timing for each memory

channel. The system may become unstable or unbootable after changing memory tim-

ing. If it occurs, please clear the CMOS data and restore the default settings. (Refer to

the Clear CMOS jumper/ button section to clear the CMOS data, and enter the BIOS to

load the default settings.)
