Chapter 3

3-20BIOS Setup 3-21 BIOS Setup



Press <Enter> to enter the sub-menu. Enables or disables the various training ways of

DRAM. The system may become unstable or unbootable after changing these items in

this sub-menu. If it occurs, please clear the CMOS data and restore the default settings.

(Refer to the Clear CMOS jumper/ button section to clear the CMOS data, and enter the

BIOS to load the default settings.)

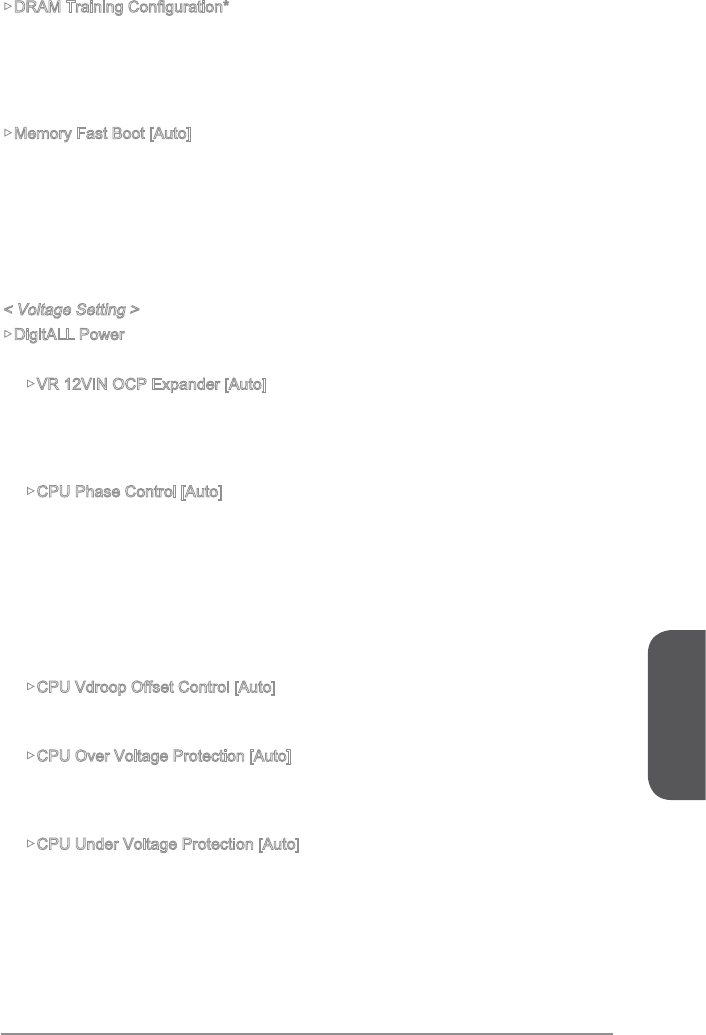

Memory Fast Boot [Auto]

Enables or disables the initiation and training for memory every booting.

 

           

training. After that, the memory will not be initialed and trained when

booting to accelerate the system booting time.

[Disabled] The memory will be initialed and trained every booting.

< Voltage Setting >

DigitALL Power

Press <Enter> to enter the sub-menu. Controls the digital powers related to CPU PWM.

VR 12VIN OCP Expander [Auto]

Expands the limitation of VR Over Current Protection with 12V input voltage. The

higher expanding value indicates less protection. Therefore, please adjust the

current carefully if needed, or it may damage the CPU/ VR MOS. If set to "Auto",



CPU Phase Control [Auto]

Controls PWM phase proportionally to the CPU loading. If set to "Auto", BIOS will



 

 



 

system with an optimum power-saving capability.

[Disabled] Disables the PWM power phase switching feature.

CPU Vdroop Offset Control [Auto]

      



CPU Over Voltage Protection [Auto]

Sets the voltage limit for CPU over-voltage protection. If set to "Auto", BIOS will

       

may damage the system.

CPU Under Voltage Protection [Auto]

Sets the voltage limit for CPU under-voltage protection. If set to "Auto", BIOS will



damage the system.
